FNIRSI DSO510 – Handheld Digital Oscilloscope – 10MHz, 48MS/s

FNIRSI
In stock and ready for shipping

SKU: FN-DSO510-DO-SG

£33.00
£33.00
Sale Sold out
/
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

FNIRSI DSO-510 2 IN 1 Mini Handheld Digital Oscilloscope DDS Signal Generator

FNIRSI DSO-510 2 IN 1 Mini Handheld Digital Oscilloscope DDS Signal Generator designed for complex signal testing, research, and development. Equipped with advanced features, it is ideal for professionals working on complex equipment repairs and educational institutions requiring precise measurements.

Main Features:

Portability and Compact Design:

  • 2.8-inch HD TFT screen with a resolution of 320×240 pixels.
  • Compact dimensions: 99×68.3×19.5 mm.
  • Lightweight — only 104 g.

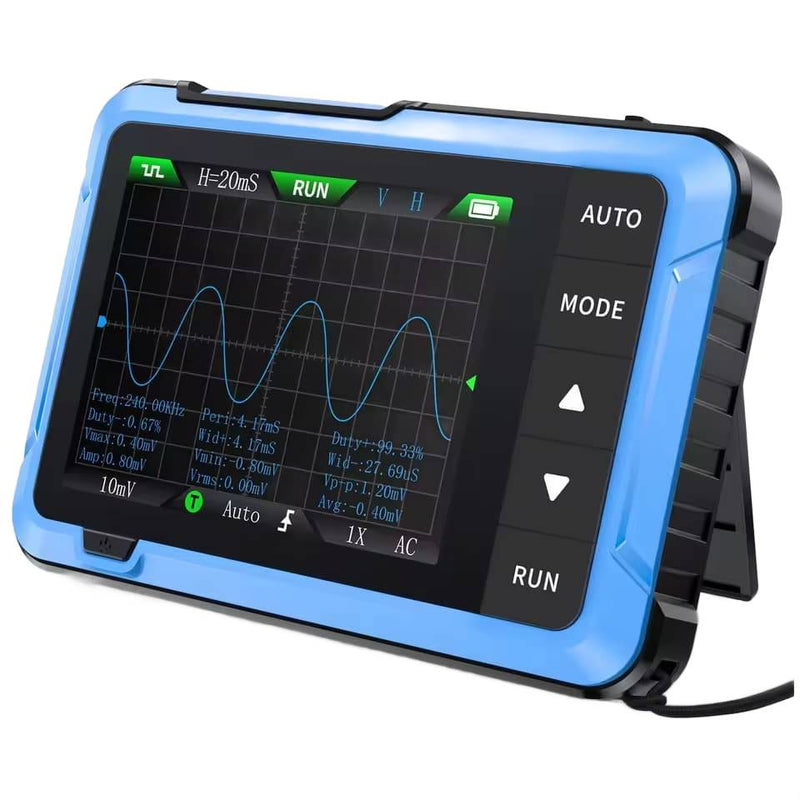

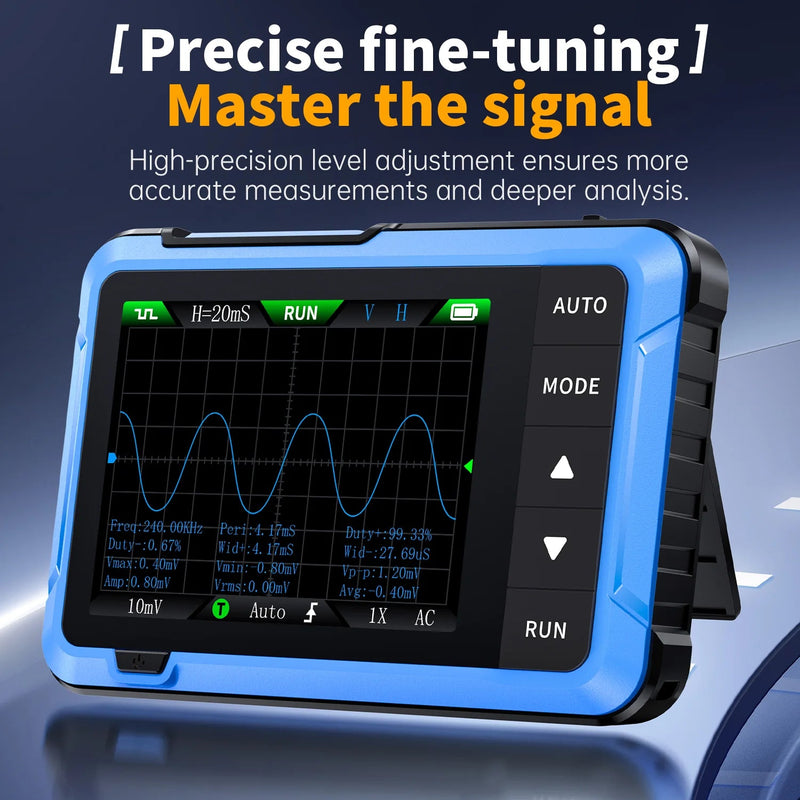

Oscilloscope Technical Capabilities:

  • Sampling rate: 48MS/s.
  • Bandwidth: 10 MHz.
  • Wide voltage range: ±400V.
  • Trigger modes: Auto, Normal, Single.

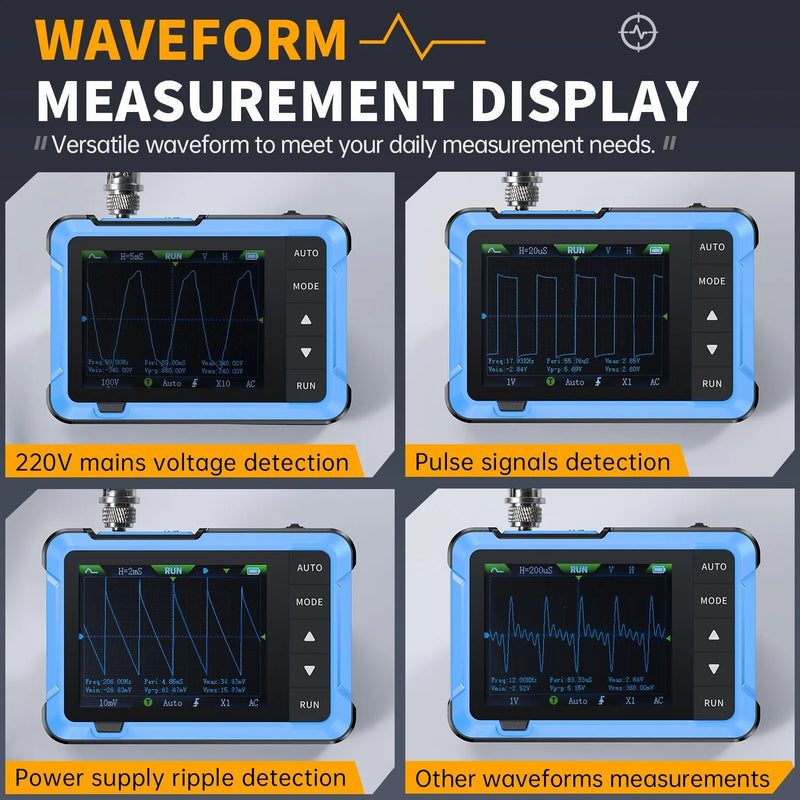

  • Supports analog periodic and digital non-periodic signals.

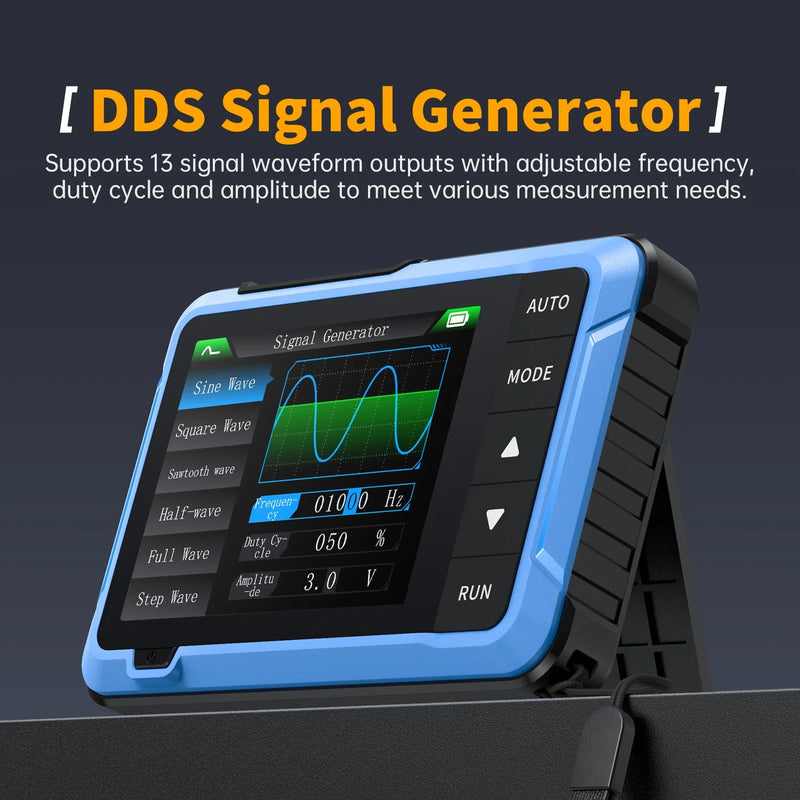

Signal Generator:

  • Frequency: up to 50 kHz.
  • Amplitude: 0.1–3.0V.
  • Signal forms: sinusoidal, square, sawtooth, half-wave, full-wave, stepped, and others.

User Convenience:

  • One-Click AUTO mode for instant signal display without complex settings.
  • Support for 8 languages, including Russian, English, Spanish, and others.
  • Intuitive operation using a Type-C interface.

Energy Efficiency:

  • 1000 mAh battery providing up to 4 hours of operation.
  • Charging via USB (5V/1A).

Specifications:

General Parameters:

  • Brand: FNIRSI
  • Model: DSO510
  • Display: 2.8" HD TFT, 320×240 pixels
  • Power: 3.7V battery, USB Type-C charging
  • Dimensions: 99×68.3×19.5 mm
  • Weight: 104 g

Mini Oscilloscope:

  • Channels: 1
  • Sampling rate: 48MS/s
  • Bandwidth: 10 MHz
  • Sensitivity: 10 mV/div – 20 V/div (step 1-2-5)
  • Time base: 50 ns/div – 20 s/div
  • Trigger modes: Auto, Normal, Single
  • Trigger edges: Rising/Falling
  • Coupling: AC/DC

Signal Generator:

  • Frequency: up to 50 kHz
  • Waveforms: Sine, Square, Sawtooth, Exponential Rise/Fall, and others
  • Amplitude: 0.1–3.0V
  • Pulse width: 0–100%

Usage Recommendations:

  • Perfect for complex repairs, development, and educational projects.
  • Suitable for hobbyists and beginners due to its ease of use.

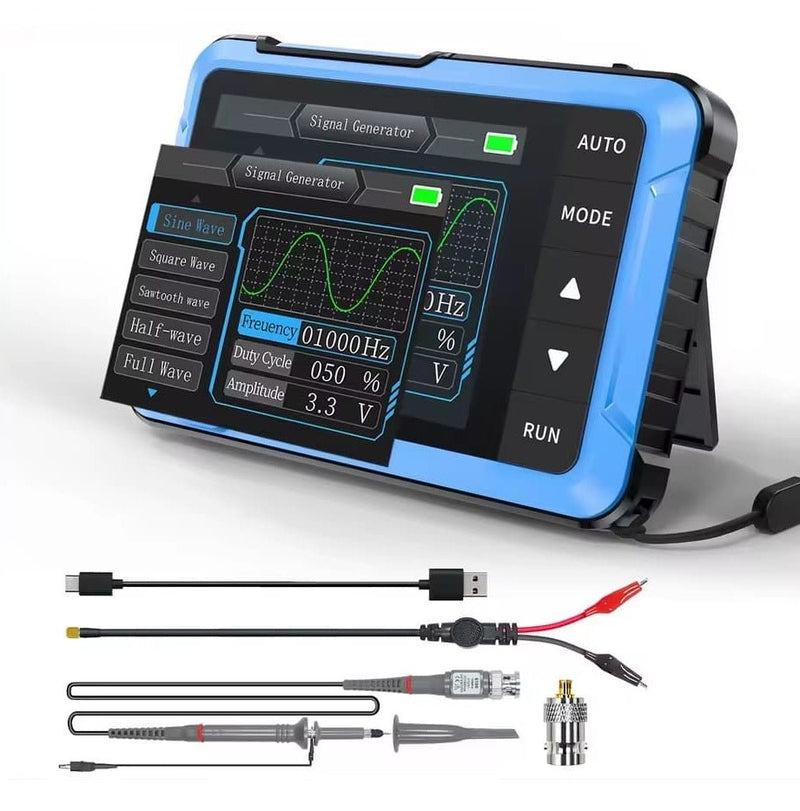

Package Contents:

  • DSO510 Oscilloscope
  • Measurement probe
  • USB Type-C cable for charging
  • User manual

This oscilloscope combines portability, powerful analysis capabilities, and convenience in one device, providing reliable measurements for a wide range of tasks.
