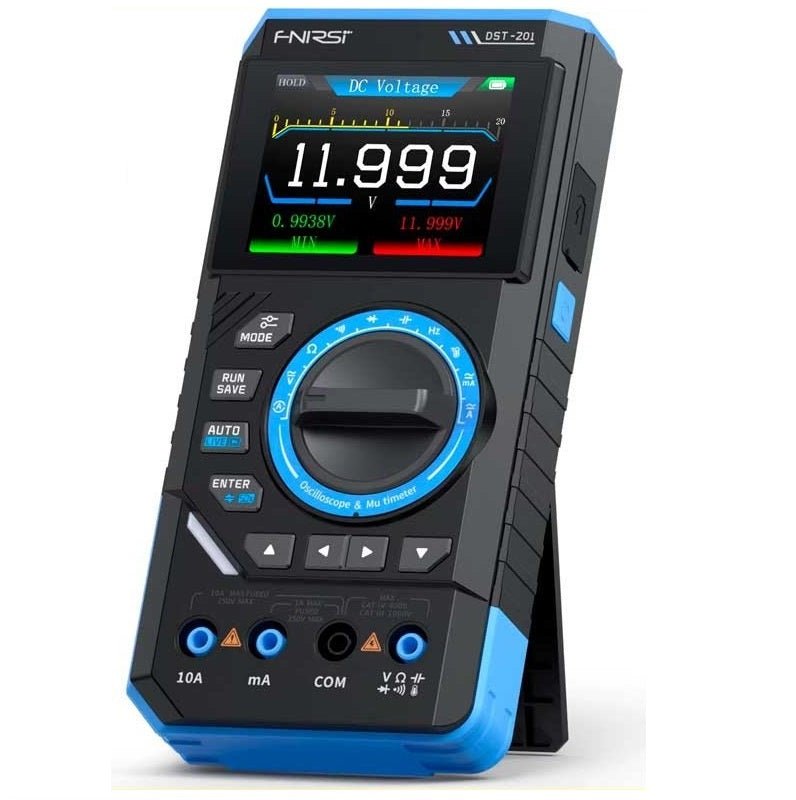

FNIRSI DST-201 Portable Digital Oscilloscope with DMM & DDS Signal Generator

Vendor FNIRSI
In stock and ready for shipping

SKU: FN-DST201-PDO-DMM-SG

Regular price £42.00
Sale price £42.00 Regular price
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

FNIRSI DST-201 Portable Digital Oscilloscope with DMM & DDS Signal Generator

The FNIRSI DST-201 is a compact and multifunctional handheld oscilloscope designed for both hobbyists and professionals. Combining a 1 MHz bandwidth oscilloscope, full-featured digital multimeter (DMM), and a 10 kHz DDS signal generator into one portable unit, the DST201 is a versatile diagnostic tool ideal for fieldwork, education, and electronics troubleshooting. Its built-in battery, color IPS display, and intuitive interface make it a reliable companion for on-the-go diagnostics.

Product Features:

  • 3-in-1 Functionality: Combines oscilloscope, digital multimeter, and function generator in a single device.
  • 1 MHz Bandwidth Oscilloscope: 5 MSa/s sample rate, 10 mV/div sensitivity, and real-time waveform capture modes (Auto, Normal, Single).
  • Wide Timebase: Adjustable from 500 ns/div to 20 s/div for detailed observation of both fast and slow signals.

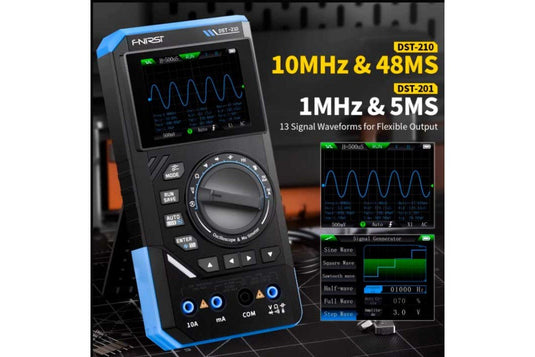

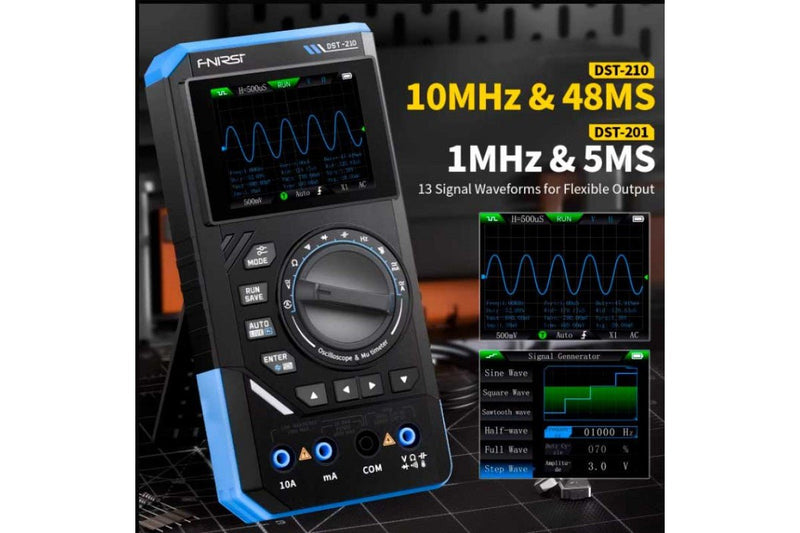

  • Built-in DDS Generator: Outputs 13 standard waveforms up to 10 kHz, including sine, square, triangle, noise, half-wave, and more.

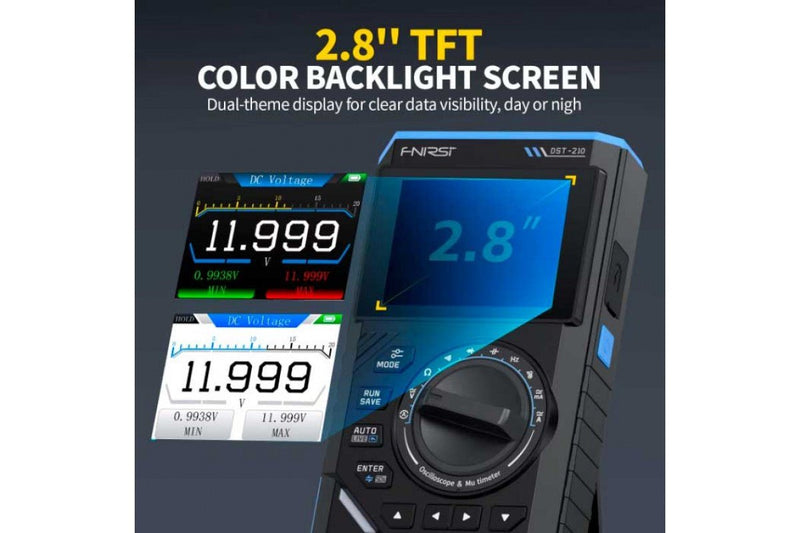

  • 2.8” IPS Display: Crisp 320x240 resolution with rich color contrast and wide viewing angles.
  • Rechargeable Battery: 3000 mAh battery offers up to 4 hours of continuous operation.
  • Auto Setup Function: Automatically configures parameters for periodic signals to simplify measurements.
  • Integrated Digital Multimeter: Measures AC/DC voltage, current, resistance, capacitance, frequency, temperature, and continuity.

Technical Specifications:

  • Model: FNIRSI DST-201
  • Oscilloscope Bandwidth: 1 MHz
  • Max Sample Rate: 5 MSa/s
  • Vertical Sensitivity: 10 mV/div – 10 V/div
  • Input Impedance: 1 MΩ (AC/DC coupling)
  • Timebase Range: 500 ns/div – 20 s/div
  • Trigger Modes: Auto / Normal / Single
  • Trigger Edge: Rising / Falling
  • Cursor Measurements: Frequency / Period / Amplitude
  • Max Input Voltage: 1:1 Probe: 80Vp-p (±40V), 10:1 Probe: 800Vp-p (±400V)
  • Display: 2.8” TFT, 320 × 240 pixels
  • Battery: 3000 mAh, USB Type-C charging (5V 1A)
  • Automatic Measurements: Max, Min, Avg, RMS, Amp, Freq, Period, Duty
  • Signal Generator: 1 channel, 0.1 V–3.0 V, 13 waveform types, up to 10 kHz
  • Dimensions: 178 × 88 × 35 mm
  • Weight: 300 g

Built-in Signal Generator:

  • Output Frequency: Up to 10 kHz
  • Amplitude: 0.1 V – 3.0 V
  • Waveforms: Sine, Square, Triangle, Noise, Half-wave, Full-wave, DC, and more (13 total)

Built-in Multimeter Functions:

  • DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V ±(0.5%+3)
  • AC Voltage: 1.9999V / 19.999V / 199.99V / 750.0V ±(1%+3)
  • DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A ±(1.2%+3)
  • AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A ±(1.5%+3)
  • Resistance: 19.999 MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ, ±(0.5%+3)
  • Resistance: 1.9999 KΩ / 199.99Ω ±( 2.0% +3)
  • Capacitance: 999.9 mF / 99.99 mF / 9.999 mF / 999.9 nF / 99.99 nF / 9.999 nF ±(2.0%+5)
  • Capacitance: 9.999 nF to 99.99 mF ±(5.0% +20)
  • Frequency: 9.999 Hz to 9.999 MHz ±(0.1%+2)
  • Temperature: -55~1300°C ±(2.5%+5)
  • Continuity Test: With buzzer
  • Diode Test: Supported

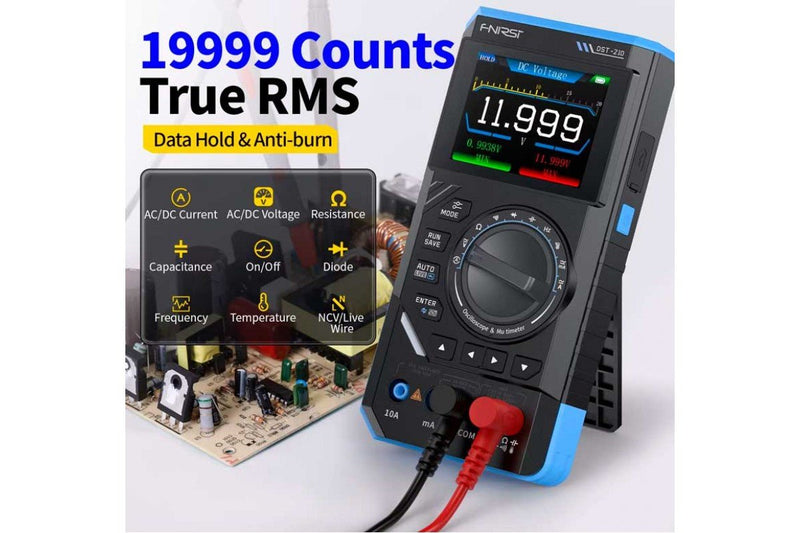

  • Display Count: 19999 counts

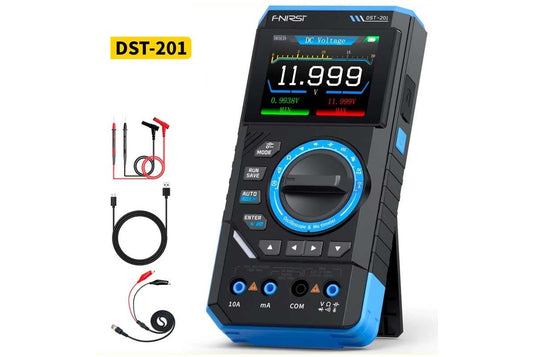

Package Includes:

  • 1 x FNIRSI DST-201 Oscilloscope
  • 1 x BNC to Alligator Probe
  • 1 x Multimeter Test Lead Set
  • 1 x USB Charging Cable
  • 1 x User Manual

Applications:

  • Electronics testing and diagnostics
  • Embedded system debugging
  • Signal tracing and waveform capture
  • Educational labs and training
  • Field service and repair tasks

Important Safety Notes:

  • Ensure proper probe configuration and voltage ranges when measuring high voltage signals.
  • Use only certified chargers and cables for battery charging.
  • Do not operate in wet or explosive environments.
  • Allow the device to cool down after extended use.
