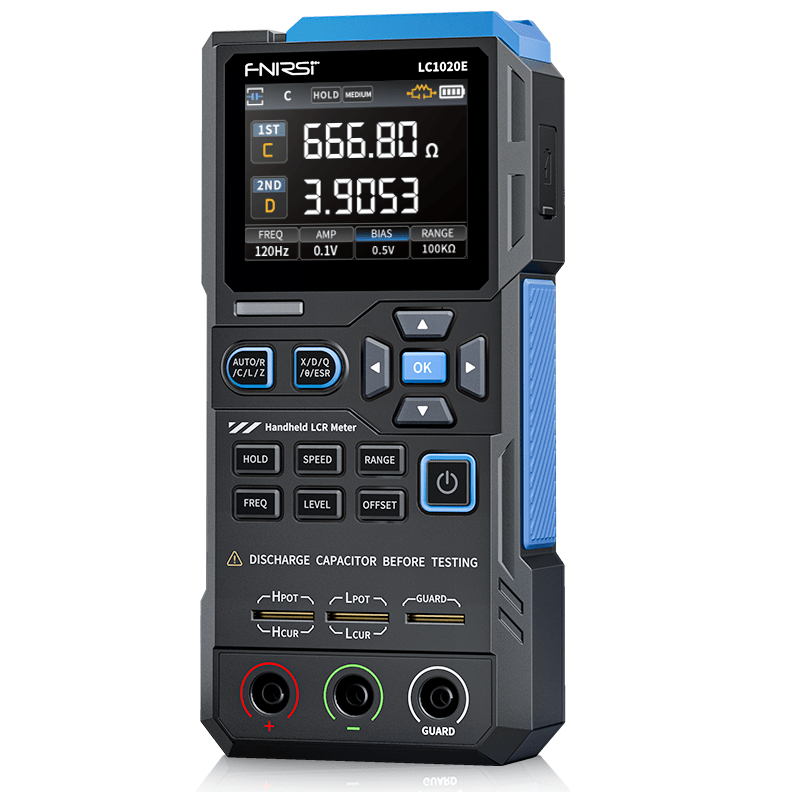

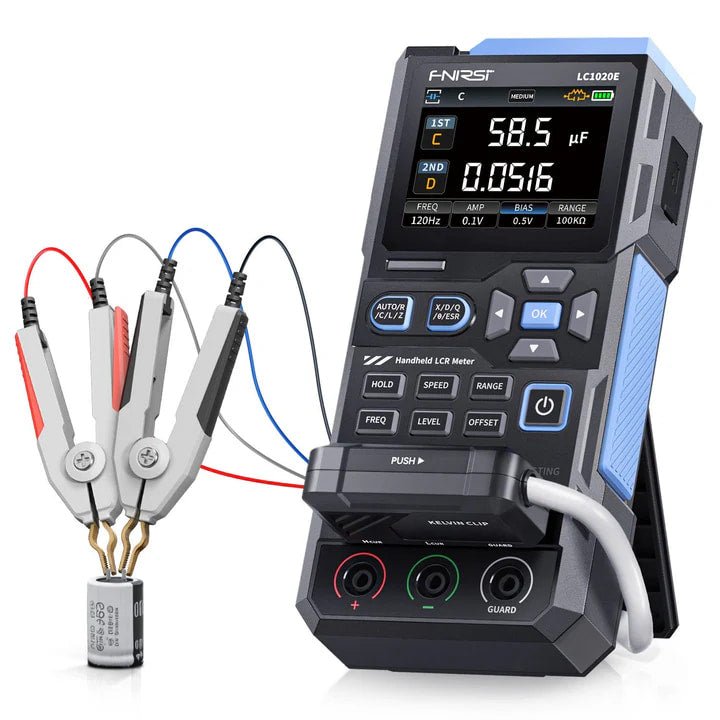

FNIRSI LC1020E LCR High-Precision Handheld Meter

FNIRSI
In stock and ready for shipping

SKU: FN-LC1020E-LCR-HPM

£59.00
£59.00
Sale Sold out
/
Tax included. Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

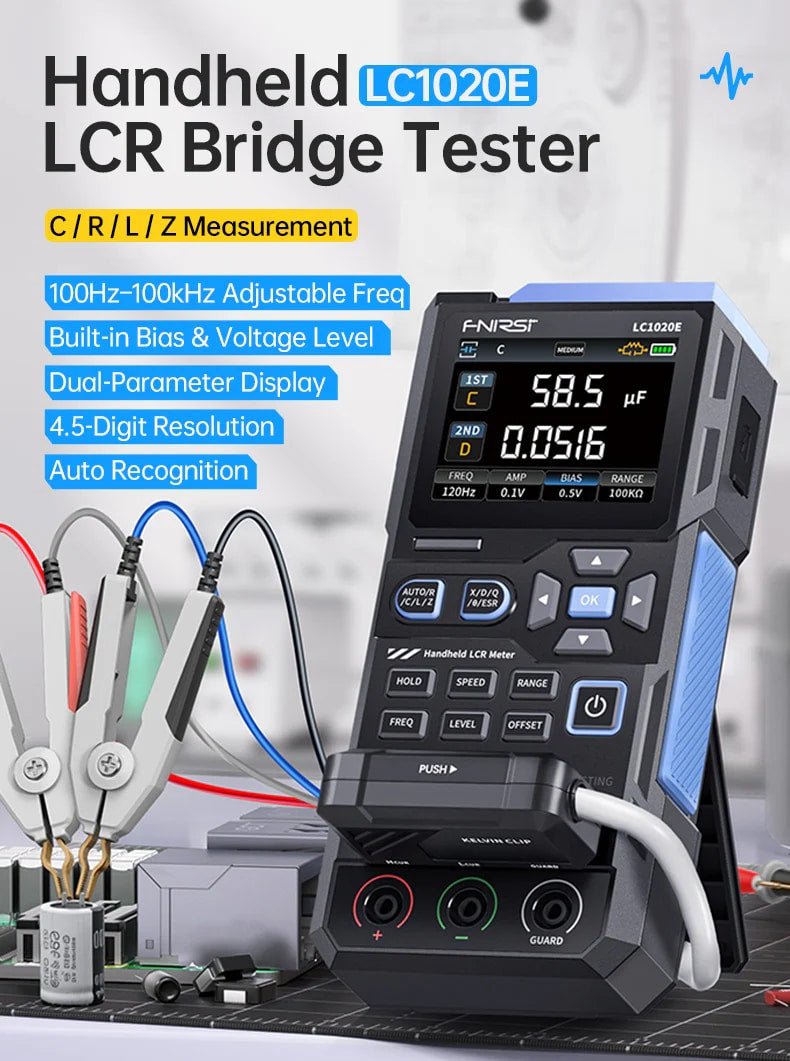

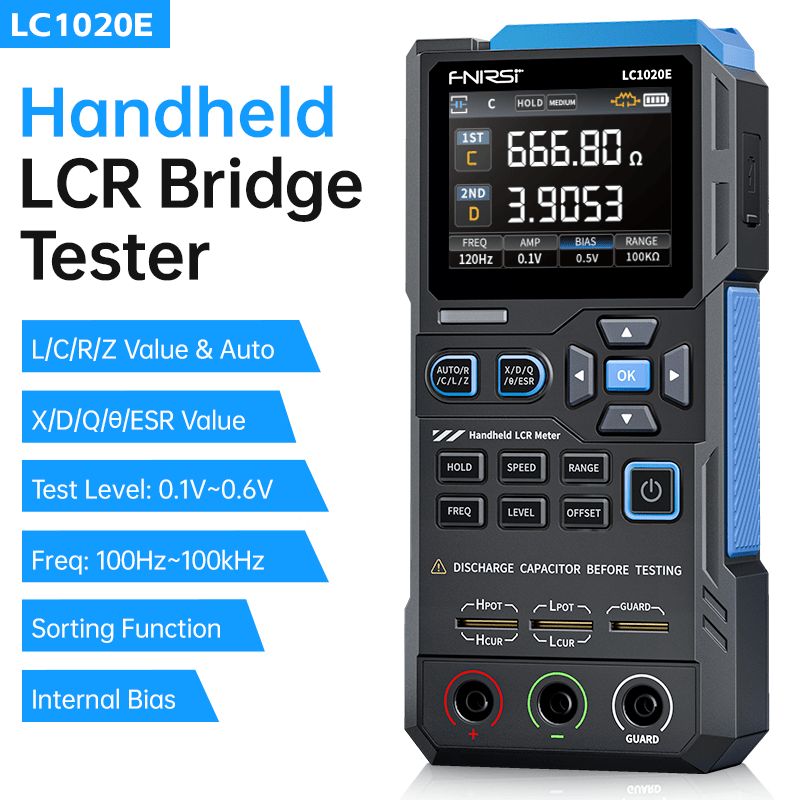

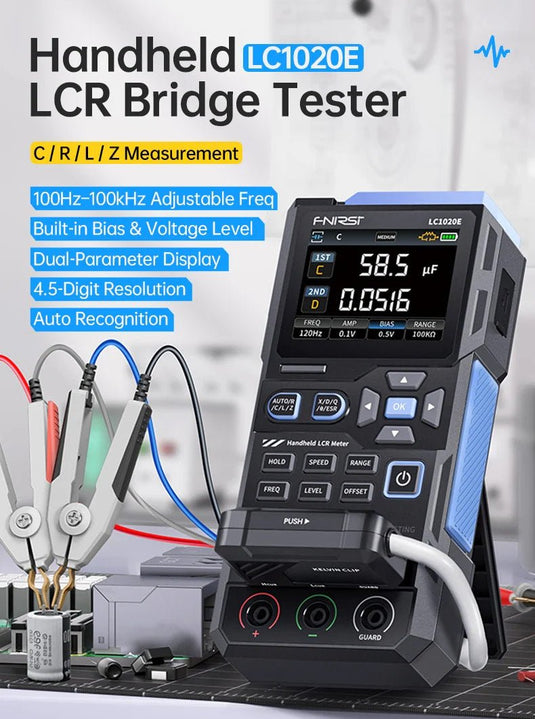

FNIRSI LC1020E - Professional 4.5-Digit LCR Meter with TFT Display

High-precision component tester offering ±0.05% basic accuracy, dual-parameter measurement, and advanced features like sorting mode and Kelvin testing. Ideal for laboratory, production, and field applications.

Key Features

  • Ultra-Precise Measurements
    ±0.05% basic accuracy with 4.5-digit resolution for professional-grade testing

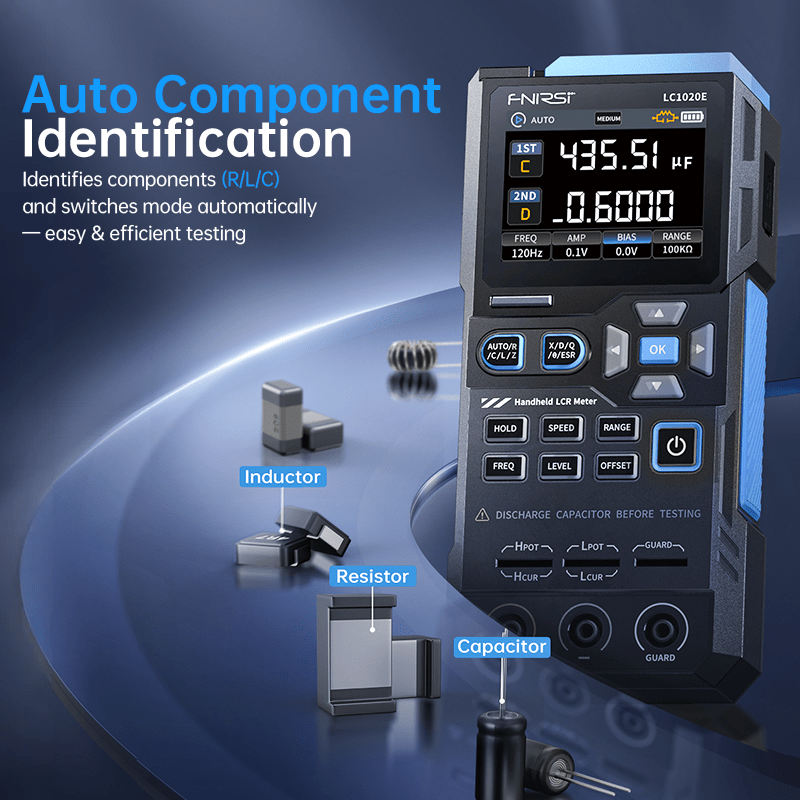

  • Smart Auto-Detection
    Instantly identifies R/L/C components with automatic mode switching
  • Multi-Frequency Analysis
    5 test frequencies (100Hz–100kHz) & 3 voltage levels (0.1V–0.6V)

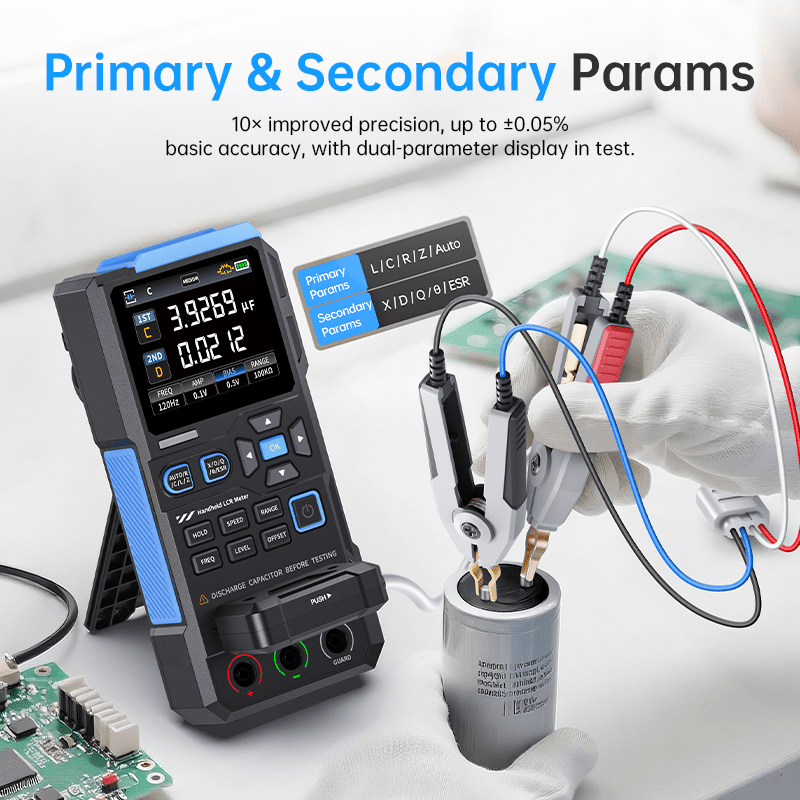

  • Dual-Parameter TFT Display
    Simultaneously shows L/C/R/Z with X/D/Q/θ/ESR values
  • Advanced Testing Modes

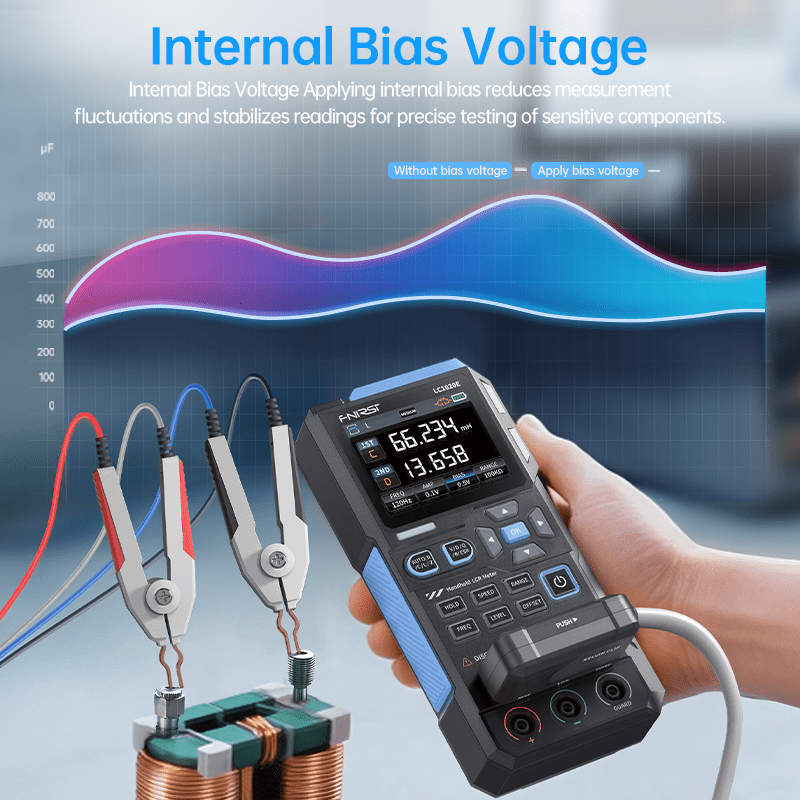

    Sorting function, built-in bias voltage (0.5V), and 4-wire Kelvin measurement

Technical Specifications

Parameter Specifications
Display 2.8" TFT LCD (4.5-digit main/secondary display)
Test Frequencies 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Measurement Range L: 0.1μH-100H | C: 1pF-100mF | R: 10mΩ-10MΩ
Basic Accuracy ±0.3% (typical ±0.05% for most ranges)
Test Ports 3-terminal & 5-terminal (4-wire Kelvin)
Battery 3000mAh Li-ion (8+ hours operation)

Measurement Accuracy

Capacitance (C)

Range 100Hz 1kHz 10kHz 100kHz
1mF-100mF 5% ±5d 3% ±5d - -
1μF-1mF 1% ±4d 0.5% ±5d 2% ±5d 3% ±4d
1nF-1μF - 0.3% ±2d 0.4% ±2d 1% ±4d
1pF-1nF - 2% ±2d 1.5% ±2d 2% ±4d

Inductance (L)

Range 100Hz 1kHz 10kHz 100kHz
1H-100H 2% ±5d 2% ±5d - -
1mH-1H 0.4% ±5d 0.3% ±2d 0.4% ±3d 2.5% ±5d

Advanced Functions

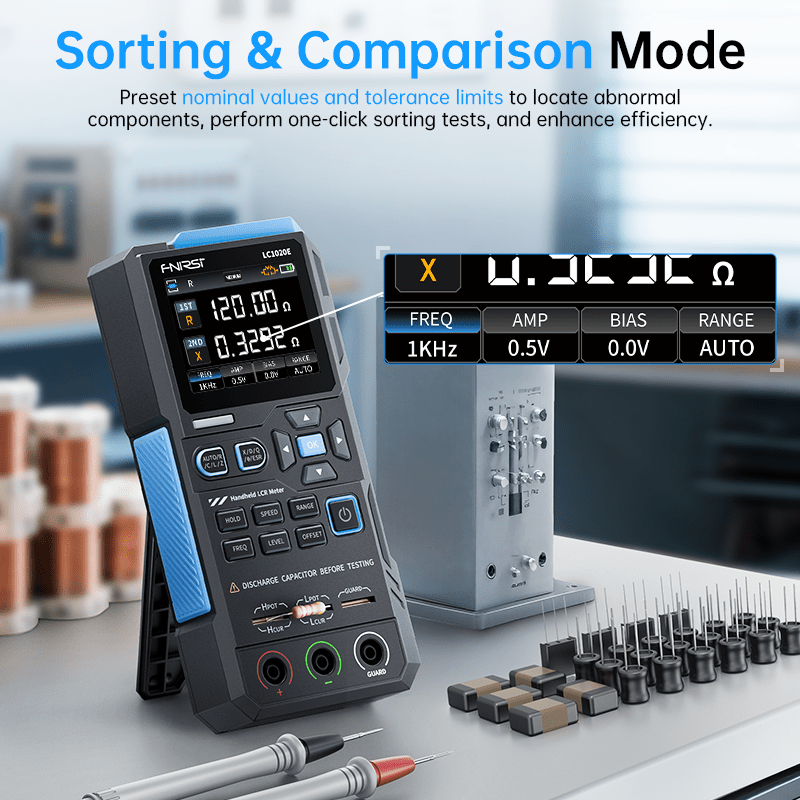

  • Sorting Mode: Set nominal values with 0.1%-99.9% tolerance for pass/fail judgment
  • Data Logging: Records measurement history with pass/fail statistics
  • System Calibration: Open/short circuit calibration for precision testing

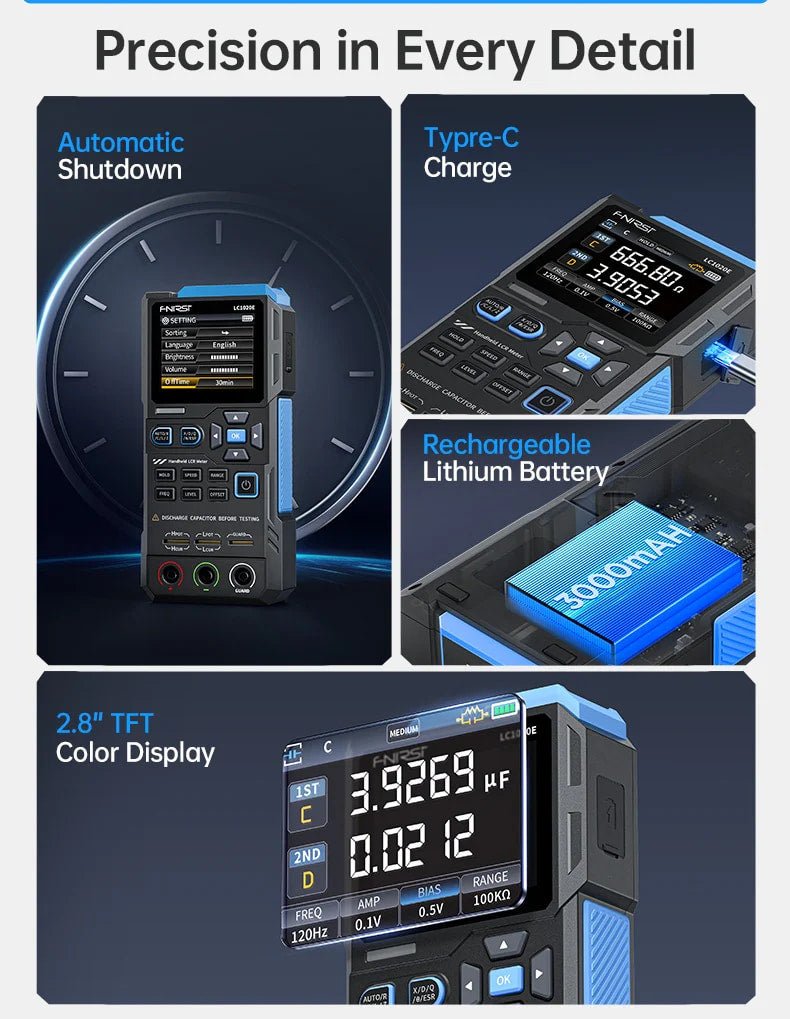

  • User Configurable: Adjust screen brightness, language, auto-power off (5-60min)

Operation Requirements

⚠ For optimal accuracy:

  • Operate at 20℃ ±2℃ with ≤80% humidity
  • Preheat unit for 30 minutes before critical measurements
  • Always perform open/short calibration when changing test fixtures
  • Use front panel test slots for all measurements

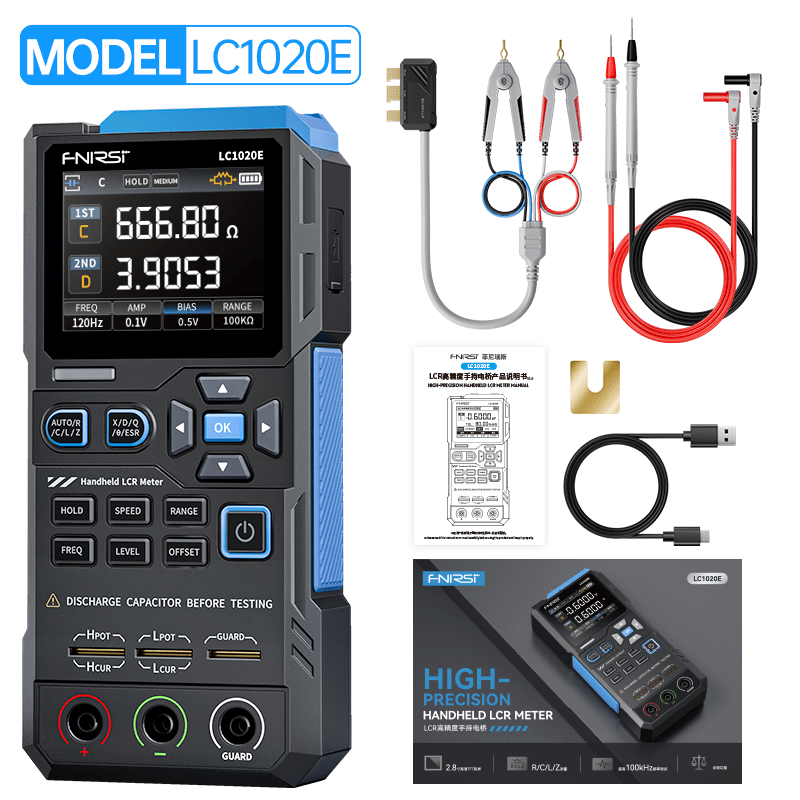

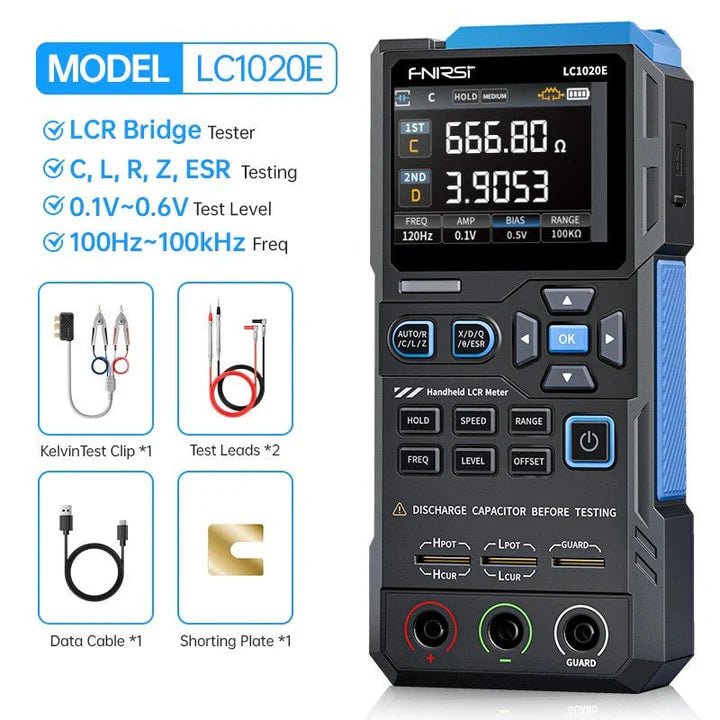

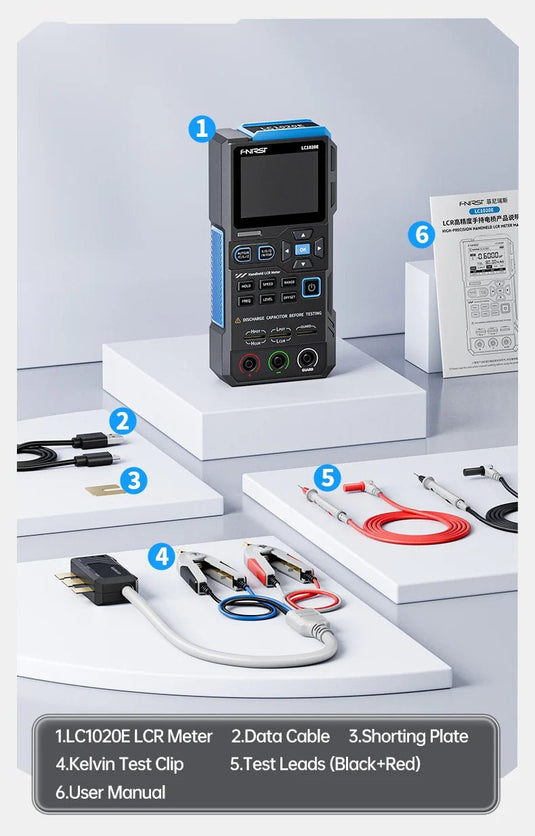

Package Contents

  • LC1020E LCR Meter
  • USB Type-C cable
  • Kelvin test clips
  • Shorting plate
  • Red/black test leads
  • User manual
