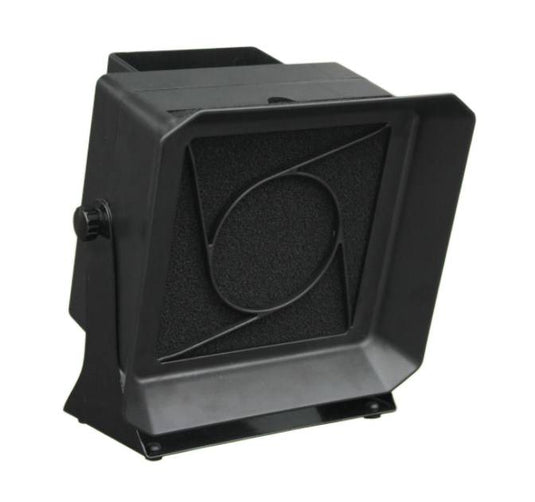

Xytronic 468 Fume Extractor, Set of 3 pcs

Xytronic 468 Fume Extractor – Set of 3 Units

The Xytronic 468ESD Fume Extractor is a compact, efficient, and ESD-safe benchtop solution for removing harmful soldering fumes from your work area. Designed for both industrial and hobby use, this fume absorber minimizes eye irritation, headaches, and respiratory discomfort caused by flux smoke and vapors. Ideal for R&D, production lines, and repair stations.

Key Features

• Built-in replaceable activated carbon filter
• Filters noxious substances like salicylic acid, pinene, and phenol
• Effective against particles and organic gases from rosin-based flux
• Max airflow: 95–115 CFM
• Adjustable tilt angle for optimal positioning (recommended 120–150mm from workpiece)
• Low power consumption: 22W
• Quiet and efficient fan operation
• ESD-safe and CE certified

Technical Specifications

Package Contents

• 3 × Xytronic 468ESD Fume Extractors
• 9 × Activated carbon filters (3 per unit, pre-packaged)
• 3 × Power cables
• 3 × User manuals

Filter Maintenance

Filters should be replaced monthly or whenever they become discolored or visibly dusty. Each unit comes with 3 filters. Additional filters are available separately in packs of 3.

Applications

• PCB soldering stations
• Electronics repair and rework
• R&D labs and hobby environments
